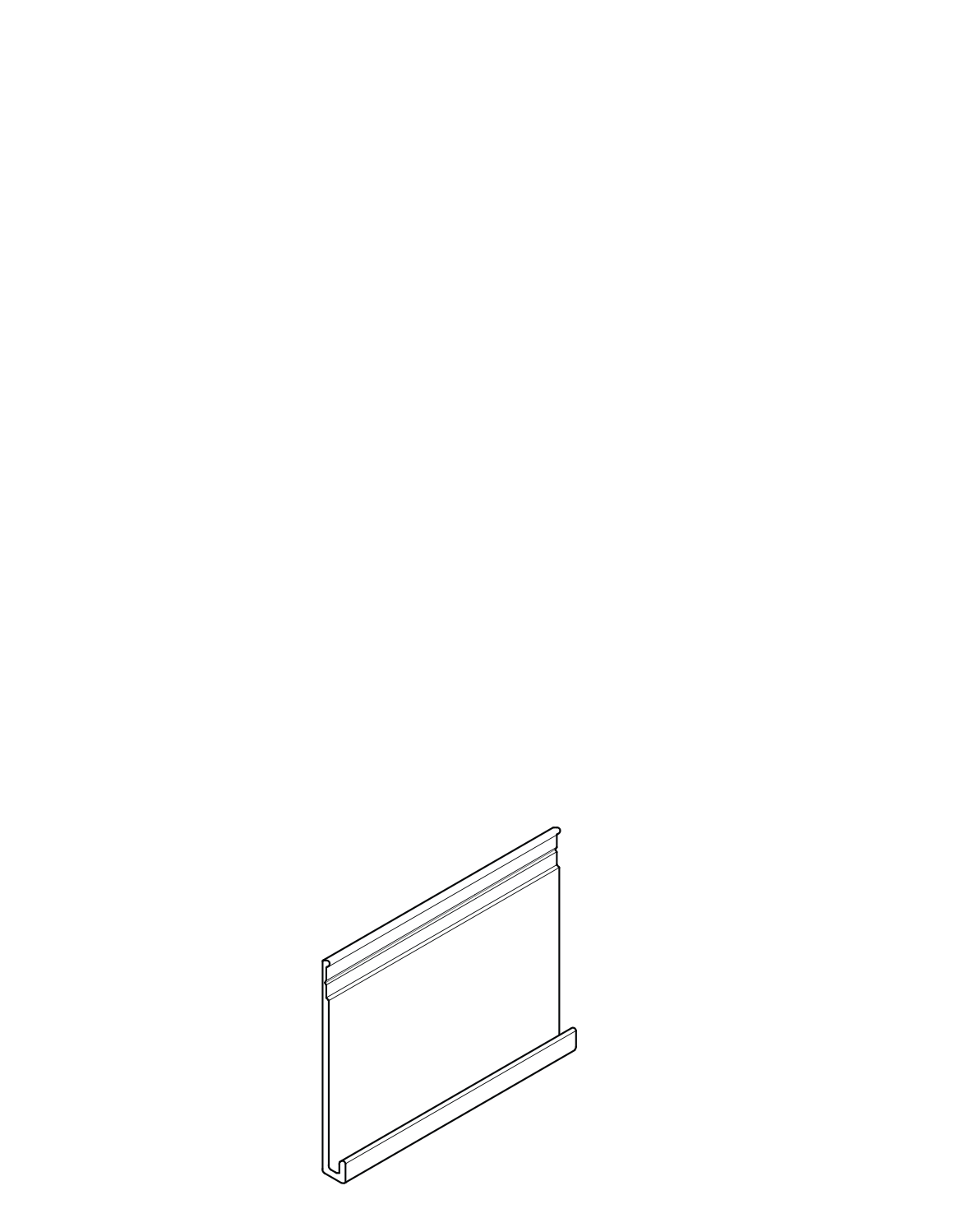

BEGINNING WITH A STARTER STRIP TO SECURE THE CLADDING IN PLACE, LUXYCLAD SIDING IS A SIMPLE, INTERLOCKING SYSTEM USING RAIN SCREEN CLIPS FOR INSTALLATION AND BACK VENTILATION.

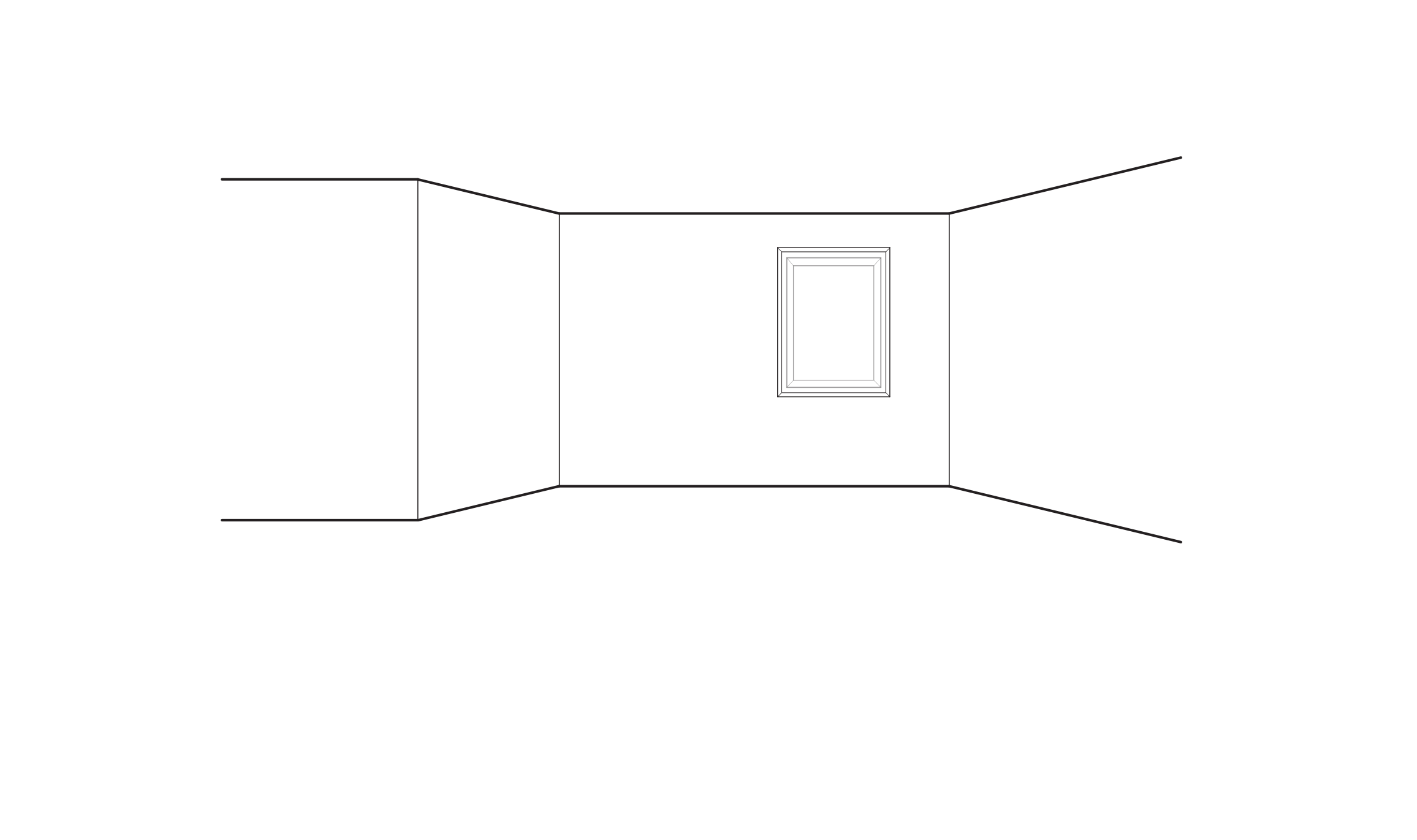

HORIZONTAL INSTALLATION

begin at bottom of wall

and install upwards


VERTICAL INSTALLATION

begin at middle of wall

and install outwards

AS A FULL CLADDING SYSTEM, LUXYCLAD IS ABLE TO COMPLETE ANY DETAIL IN A VARIETY OF WAYS USING THE SYSTEM'S ASSORTMENT OF TRIM PIECES AND SIDING PROFILES.


FLAT ROOF - SECTION VIEW

flat roofs and parapets are easily accommodated with seamless transitions between walls, soffits, and fascias


GABLE ROOF - SECTION VIEW

4" perforated soffit profiles allow for ventilation while 6" siding profiles create a smooth fascia look


EXTERIOR WALL - PLAN VIEW

with HORIZONTAL SIDING

splicer pieces give support to seamless butt joints while

j-trims allow for a clean install around windows and openings


EXTERIOR CORNER - PLAN VIEW

with VERTICAL SIDING

regardless of the wall assembly including exterior insulation or not, corners are easily accommodated with inside and outside corner trim pieces
